3D Printing Design Guidelines: Wall Thickness, Tolerances & Rules.

Designing components for additive manufacturing requires unlearning many traditional subtractive machining and injection molding conventions. While traditional CNC milling penalizes deep internal cavities, 3D printing thrives on complex organic internal geometries. However, additive manufacturing introduces unique physical constraints regarding molten polymer extrusion, thermal contraction, and layer boundary physics. Whether you are using an in-house desktop 3d printer or ordering from a commercial 3d printing service, adhering to rigorous Design for Additive Manufacturing (DFAM) rules prevents failed builds and costly redesign cycles. Our specialized 3d printing services pakistan incorporate automated and manual DFAM inspections. By mastering these principles for custom 3d printing across fdm, resin, and powder platforms, you ensure every printed component fits first time.

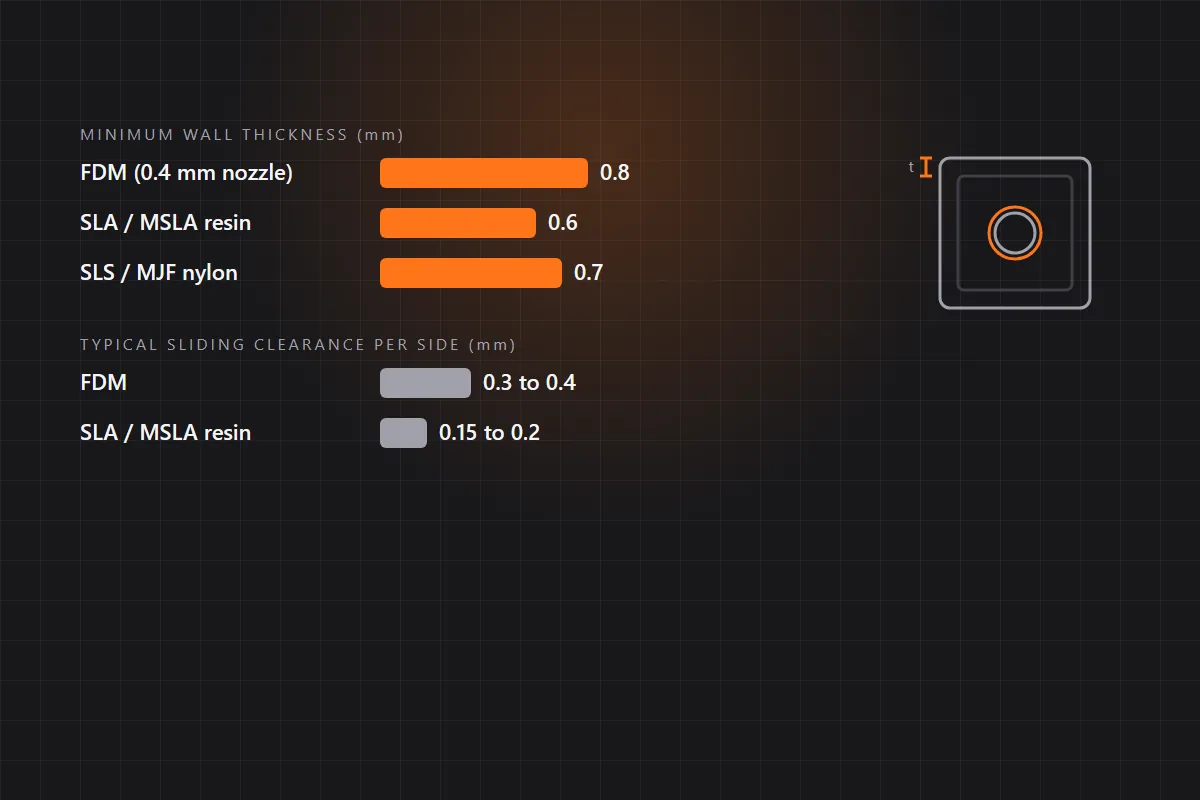

1. Wall Thickness Guidelines Across Technologies

Wall thickness is the primary determinant of part structural rigidity and build success. Designing walls too thin causes delamination, buckling, or incomplete extrusion:

• FDM Wall Thickness: Minimum supported wall thickness is 0.8mm; recommended nominal structural wall thickness is 1.6mm to 2.4mm. Always design wall dimensions as integer multiples of 0.4mm (nozzle diameter) to prevent slicers from creating microscopic hollow gaps inside the wall core.
• SLA Resin Wall Thickness: Minimum supported wall thickness is 0.6mm; minimum unsupported free-standing wall is 1.0mm. Thinner walls tend to warp or curl during isopropyl alcohol washing and heated UV post-curing.
• SLS/MJF Nylon Wall Thickness: Minimum supported wall thickness is 0.7mm; recommended structural wall thickness is 1.2mm to 2.0mm. Walls exceeding 4.0mm should be hollowed out to avoid localized heat sink sink-marks during cooling.

2. Overhangs, Bridges, and the 45-Degree Threshold

Because 3D printers build in mid-air layer by layer, steep horizontal overhangs cannot support molten plastic without an underlying foundation:

• The 45-Degree Angle Threshold: Any feature inclined up to 45 degrees from the vertical axis prints cleanly without support structures. At angles between 45 and 60 degrees, minor underside surface roughness occurs. Angles exceeding 60 degrees require automatic support generation.
• Horizontal Bridging Limits: When bridging between two vertical pillars, FDM machines can bridge unsupported horizontal spans up to 10mm to 15mm with aggressive part cooling fans. For longer bridges, incorporate structural chamfers or arches to convert the bridge into self-supporting angles.

3. Assembly Tolerances and Clearances

When modeling interlocking mechanical assemblies, snap-fit lids, or multi-part enclosures, accounting for thermal expansion and slicer kerf offsets is essential:

• Press-Fit (Interference Fit): Radial offset of 0.05mm to 0.10mm, requiring light arbor press or hammer tapping to lock components permanently.
• Sliding / Kinematic Clearance: Radial offset of 0.30mm to 0.40mm for FDM parts, allowing smooth rotation without binding or excessive wobble.
• Hole Sizing Compensation: FDM printers naturally print small vertical holes (under 10mm diameter) slightly undersized by 0.2mm to 0.4mm due to polymer surface tension pulling inward. Model screw holes 0.3mm larger than nominal or ream them post-print with a standard drill bit.

4. Stress Concentrations and Chamfer Rules

Sharp internal 90-degree corners act as mechanical stress concentrators, multiplying localized shear loads and causing catastrophic cracking along layer boundaries:

1. Add Generous Internal Fillets: Apply minimum radius fillets of 1.5mm to 3.0mm to all interior corners, distributing dynamic bending stresses smoothly across adjacent walls.
2. Use 45-Degree Base Chamfers: Avoid sharp 90-degree corners on the bottom surface touching the build plate. A 0.8mm x 45-degree chamfer eliminates the 'elephant's foot' dimensional flare caused by initial layer squish.
